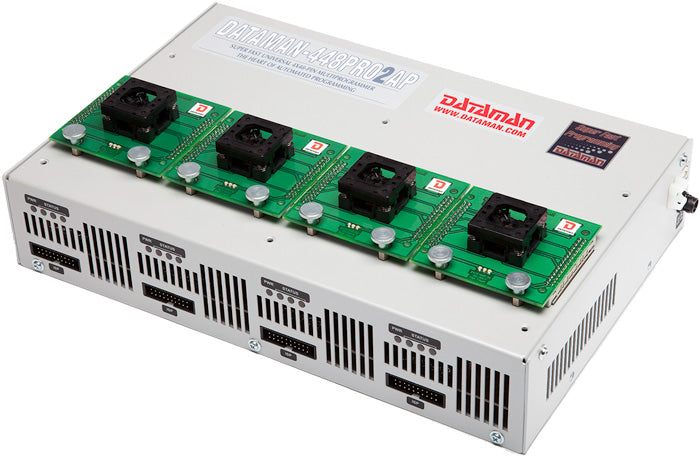

Dataman 448Pro2AP Super Fast Industrial Gang Programmer

SKU: 448Pro2AP
$4,395.00

Super fast industrial gang programmer with four independent modules, ISP capabilities and USB 2.0 connectivity. The 448Pro2AP is built to meet the demands of high volume production programming with automated handlers and ATE machines.

Supporting over 93,000 devices with new support being added monthly, the Dataman 448Pro2AP gives you the freedom to choose the optimal device for your requirements.

General

  • The 448Pro2AP programmer offers the same advanced features as the 448Pro2 programmer but in a form suitable for industrial applications such as automated handlers and ATE machines.
  • The footprint of the Dataman 448Pro2AP has been reduced by 24% compared with the 448Pro2 to minimise the handler’s movement and maximises throughput.
  • Mechanically stable case designed to be immune to vibration during operation. The case offers multiple fixing points allowing for easy integration with automated handlers and ATE machines.
  • FPGA based totally reconfigurable 48 powerful TTL pindrivers provide H/L/pull_up/pull_down and read capability for each pin of the socket. Advanced pindrivers incorporate high-quality high-speed circuitry to deliver signals without overshoot or ground bounce for all supported devices. Pin drivers operate down to 1.8V so you'll be ready to program the full range of tomorrow's advanced low-voltage devices.
  • Each programming module performs device insertion tests and contact checks before it programs each device. These capabilities, supported by overcurrent protection and signature-byte check, help prevent chip damage due to operator error.
  • Selftest capability allows diagnostics in the software to thoroughly check the health of the programmer.
  • Built-in protection circuits eliminate damage of the programming module and/or programmed device due to environment or operator failure. The Dataman 448Pro2AP programmer is protected against ESD up to 15kV.
  • The 448Pro2AP programmer performs programming verification at the marginal levels of supply voltage, improving programming yield and guaranteeing long data retention.
  • Socket converters utilise an extremely stable design and are constructed to meet the additional demands of automated handlers. This design allows them to retain exact positioning even after changing.
  • Wide range of socket converters are available to handle devices in PLCC, SOIC, PSOP, SSOP, TSOP, TSSOP, TQFP, QFN (MLF), SDIP, BGA and other packages.


Programmer Specification

  • 4 x universal programming module
  • Power and operation status LEDs
  • USB 2.0 high-speed compatible port
  • Protection against surge and ESD on power supply input
  • Grounding point


Module Specification

Base Unit (DAC)

  • On-board intelligence: powerful microprocessor and FPGA based state machine
  • Three D/A converters for VCCP, VPP1, and VPP2, controllable rise and fall time
  • VCCP range 0..8V/1A
  • VPP1, VPP2 range 0..26V/1A
  • Selftest capability


Socket Connector

  • Pindrivers: 48 universal
  • VCCP/VPP1/VPP2 can be connected to each pin
  • Perfect ground for each pin
  • FPGA based TTL driver provides H, L, CLK, pull-up, pull-down on all pindriver pins
  • Analog pindriver output level selectable from 1.8V up to 26V
  • Current limitation, overcurrent shutdown, power failure shutdown
  • ESD protection on each pin (IEC1000-4-2: 15kV air, 8kV contact)
  • Continuity test: each pin is tested before every programming operation


ISP Connector

  • 20-pin male type with missinsertion lock
  • 6 TTL pindrivers, provides H, L, CLK, pull-up, pull-down; level H selectable from 1.8V up to 5V to handle all (including low-voltage) devices
  • 1x VCCP voltage (range 2V..7V/100mA), can be applied to two pins
  • Programmed chip voltage (VCCP) with both source/sink capability and voltage sense
  • 1x VPP voltage (range 2V..25V/50mA), can be applied to six pins
  • Target system supply voltage (range 2V..6V/250mA)
  • ESD protection on each pin (IEC1000-4-2: 15kV air, 8kV contact)
  • Two output signals, which indicate state of work result = LED OK and LED Error (active level: min 1.8V)
  • Input signal, switch YES! equivalent (active level: max. 0.8V)

User Interface

Production Mode Control

  • This part of the software is focused on the easy monitoring of high-volume production operations.
  • Operator-friendly control software combines many powerful functions with ease of use. Graphical user interface provides an overview of important information, reducing the burden on the operator with unnecessary details.
  • Project files are used to control the 448Pro2AP and contain user data, chip programming setup, chip configuration, auto programming command sequence. This helps minimize operator error as the project file is normally created by an engineer and then passed to the operator. The optional protected mode can be set avoiding unwanted changes to the project file.
  • Each chip may be programmed with different data such as serial number, configuration and calibration information.


Engineering Mode Control

  • This part of the software is focused on the quick and easy preparation of the project file for usage in the production mode control software.
  • Each programming module is driven by an easy-to-use control program with pull-down menus, hot keys and on-line help. Selecting a device is performed by its class, by manufacturer or simply by typing a fragment of the vendor name and/or part number.
  • Standard device-related commands (read, blank check, program, verify, erase) are enhanced by test functions (insertion test, signature-byte check) and additional special functions (auto-increment serialisation, production mode - programming starts immediately after chip is inserted).
  • All known data formats are supported. Automatic file format detection and conversion performed during loading of file.
  • The versatile auto-increment function allows each programmed device to be assigned an individual or incrementing serial number. This function also enables the operator to read serial numbers or device identification signatures from a file.
  • The software provides extensive information about programmable devices including detailed drawings of all available packages. The software also provides explanations of chip labelling (prefixes and suffixes).
  • Keeping your programmer software up to date can be a costly business with some programmers. Dataman offers completely FREE software updates whenever you need them. The latest software is always available from our website.


Device Support

The Dataman 448Pro2AP supports over 93,000 of the most popular devices in use today - with future devices being added monthly. Dataman 448Pro2AP coverage includes the following device types:

ZIF Socket

  • EPROM: NMOS/CMOS, 2708*, 27xxx and 27Cxxx series, with 8/16 bit data width, full support for LV series
  • EEPROM: NMOS/CMOS, 28xxx, 28Cxxx, 27EExxx series, with 8/16 bit data width
  • Flash EPROM: 28Fxxx, 29Cxxx, 29Fxxx, 29BVxxx, 29LVxxx, 29Wxxx, 49Fxxx series, Samsung's K8Fxxxx, K8Cxxxx, K8Sxxxx, K8Pxxxx series, from 256Kbit to 1Gbit, with 8/16 bit data width, full support for LV series
  • NAND FLASH: Samsung K9xxx, Hynix HY27xxx, Toshiba TC58xxx, Micron MT29Fxxx, Spansion S30Mxxx, Numonyx (ex STM) NANDxxx
  • eMMC: Hynix H26Mxxxxxxxx, Kingston KE44B-xxxx/xxx, Micron MTFCxxxxxx, Numonyx NANDxxxxxxxx, Phison PSM4A11-xx, Samsung KLMxxxxxxx, SanDisk SDINxxx-xx, Toshiba THGBMxxxxxxxxxx
  • LBA-NAND: Toshiba THGVNxxx
  • mDOC H3: SanDisk (ex M-Systems) SDED5xxx, SDED7xxx, MD2533xxx, MD2534xxx, Hynix HY23xxx
  • Multi-chip devices: NAND+RAM, NOR+RAM, NOR+NOR+RAM, NAND+NOR+RAM
  • FRAM: Ramtron
  • MRAM: Everspin MRxxxxx8x
  • NV RAM: Dallas DSxxx, SGS/Inmos MKxxx, SIMTEK STKxxx, XICOR 2xxx, ZMD U63x series
  • PROM: AMD, Harris, National, Philips/Signetics, Tesla, TI
  • Serial E(E)PROM: Serial E(E)PROM: 11LCxxx, 24Cxxx, 24Fxxx, 25Cxxx, 59Cxxx, 85xxx, 93Cxxx, NVM3060, MDAxxx series, full support for LV series, AT88SCxxx
  • Serial Flash: standard SPI (25Pxxx, 25Fxxx, 25Lxxx, 25Bxxx, 25Txxx,25Sxxx, 25Vxxx, 25Uxxx, 25Wxxx, 45PExx), high performance Dual I/O SPI (25Dxxx, 25PXxxx), high performance Quad SPI (25Qxxx, 26Vxxx), DataFlash (AT45Dxxx, AT26Dxxx)
  • Configuration (EE)PROM: XCFxxx, XC17xxxx, XC18Vxxx, EPCxxx, EPCSxxx, AT17xxx, AT18Fxxx, 37LVxx
  • 1-Wire E(E)PROM: DS1xxx, DS2xxx
  • PLD Altera: MAX 3000A, MAX 7000A, MAX 7000B, MAX 7000S, MAX7000AE, MAX II/G/Z
  • PLD Lattice: ispGAL22V10x, ispLSI1xxx, ispLSI1xxxEA, ispLSI2xxx, ispLSI2xxxA, ispLSI2xxxE, ispLSI2xxxV, ispLSI2xxxVE, ispLSI2xxxVL, LC4xxxB/C/V/ZC/ZE, M4-xx/xx, M4A3-xx/xx, M4A5-xx/xx, M4LV-xx/xx, ispCLOCK, Power Manager/II, ProcessorPM
  • PLD: Xilinx: XC9500, XC9500XL, XC9500XV, CoolRunner XPLA3, CoolRunner-II
  • other PLD: SPLD/CPLD series: AMI, Atmel, AMD-Vantis, Gould, Cypress, ICT, Lattice, NS, Philips, STM, VLSI, TI
  • FPGA: Actel: ProASIC3, IGLOO, Fusion
  • FPGA: Lattice: MachXO, LatticeXP, ispXPGA
  • FPGA: Xilinx: Spartan-3AN
  • Clocks: TI(TMS), Cypress
  • Special chips: Atmel Tire Pressure Monitoring ATA6285N, ATA6286N, PWM controllers: Zilker Labs, Analog Devices, Gamma buffers: TI, Maxim ...
  • Microcontrollers 48 series: 87x41, 87x42, 87x48, 87x49, 87x50 series
  • Microcontrollers 51 series: 87xx, 87Cxxx, 87LVxx, 89Cxxx, 89Sxxx, 89Fxxx, 89LVxxx, 89LSxxx, 89LPxxx, 89Exxx, 89Lxxx, all manufacturers, Philips LPC series
  • Microcontrollers Intel 196 series: 87C196 KB/KC/KD/KT/KR/...
  • Microcontrollers Atmel ARM. ARM7: AT91SAM7Sxx, AT91SAM7Lxx, AT91SAM7Xxx, AT91SAM7XCxx, AT91SAM7SExx series; ARM9: AT91SAM9xxx series; ARM Cortex-M3: AT91SAM3Uxxx series
  • Microcontrollers Atmel AVR 8bit/16bit: AT90Sxxxx, AT90pwm, AT90can, AT90usb, ATtiny, ATmega, ATxmega series
  • Microcontrollers Atmel AVR32: AT32UC3xxxx
  • Microcontrollers Chipcon (TI): CC11xx, CC24xx, CC25xx series
  • Microcontrollers Coreriver: Atom 1.0, MiDAS1.0, 1.1, 2.0, 2.1, 2.2, 3.0 series
  • Microcontrollers Cypress: CY7Cxxxxx, CY8Cxxxxx
  • Microcontrollers ELAN: EM78Pxxx
  • Microcontrollers Infineon(Siemens): XC800, C500, XC166, C166 series
  • Microcontrollers MDT 1xxx and 2xxx series
  • Microcontrollers Microchip PICmicro: PIC10xxx, PIC12xxx, PIC16xxx, PIC17Cxxx, PIC18xxx, PIC24xxx, dsPIC, PIC32xxx series
  • Microcontrollers Motorola/Freescale: HC05, HC08, HC11, HC12, HCS08, RS08, S12, S12X, MC56F, MCF51, MCF52 series
  • Microcontrollers Myson MTV2xx, 3xx, 4xx, 5xx, CS89xx series
  • Microcontrollers National: COP8xxx series
  • Microcontrollers NEC: uPD70Fxxx, uPD78Fxxx series
  • Microcontrollers Novatek: NT68xxx series
  • Microcontrollers Nuvoton (Winbond): N79xxx, W77xxx, W78xxx, W79xxx, W83xxx series
  • Microcontrollers NXP ARM Cortex-M3: LPC13xx, LPC17xx series
  • Microcontrollers Philips (NXP) UOC series: UOCIII, UOC-TOP, UOC-Fighter series
  • Microcontrollers Philips (NXP) ARM7: LPC2xxx, PCD807xx, SAF7780xxx series
  • Microcontrollers Scenix (Ubicom): SXxxx series
  • Microcontrollers Renesas: R8C/Tiny series
  • Microcontrollers SGS-Thomson: ST6xx, ST7xx, ST10xx, STR7xx series
  • Microcontrollers SyncMOS: SM59xxx, SM73xxx, SM79xxx, SM89xxx series
  • Microcontrollers & Programmable System Memory STMicroelectronics: uPSD, PSD series
  • Microcontrollers STM: ST6xx, ST7xx, ST10xx, STR7xx, STR9xx, STM32Fxx, STM8A/S/L series
  • Microcontrollers Silicon Laboratories(Cygnal): C8051 series
  • Microcontrollers Texas Instruments: MSP430, MSC12xx series, TMS320F series
  • Microcontrollers Texas Instruments (ex Luminary Micro): LM3Sxxx, LM3Sxxxx series
  • Microcontrollers ZILOG: Z86/Z89xxx and Z8Fxxxx, Z8FMCxxxxx, Z16Fxxxx, ZGP323xxxxxx, ZLF645xxxxxxx, ZLP12840xxxxx, ZLP323xxxxxxx series
  • Microcontrollers other: EM Microelectronic, Fujitsu, Goal Semiconductor, Hitachi, Holtek, Novatek, Macronix, Princeton, Winbond, Samsung, Toshiba, Mitsubishi, Realtek, M-Square, ASP, Coreriver, Gencore, EXODUS Microelectronic, Megawin, Syntek, Topro, TinyARM, VersaChips, SunplusIT, Nordic, M-Square, QIXIN, Signetic, Tekmos, Weltrend, Amic, Cyrod Technologies, Ember, Ramtron, Nordic Semiconductor, Samsung, ...


ISP Connector

  • Serial E(E)PROM: IIC series, MW series, SPI series, KEELOQ series, PLD configuration memories, UNI/O series
  • 1-Wire E(E)PROM: DS1xxx, DS2xxx
  • Serial Flash: standard SPI (25xxx), DataFlash (AT45Dxxx, AT26Dxxx)
  • Microcontrollers Atmel: AT89Sxxx, AT90pwm, AT90can, AT90usb, AT90Sxxxx, ATtiny, ATmega, ATxmega, AT89LSxxx, AT89LPxxx
  • Microcontrollers Atmel AVR32: AT32UC3xxxx
  • Microcontrollers Chipcon (TI): CC11xx, CC24xx, CC25xx series
  • Microcontrollers Cypress: CY8C2xxxx
  • Microcontrollers Elan: EM78Pxxx, EM6xxx series
  • Microcontrollers EM Microelectronic: 4 and 8 bit series
  • Microcontrollers Microchip PICmicro: PIC10xxx, PIC12xxx, PIC16xxx, PIC17xxx, PIC18xxx, PIC24xxx, dsPIC, PIC32xxx series
  • Microcontrollers Mitsubishi: M16C
  • Microcontrollers Motorola/Freescale: HC08 (both 5-wire, All-wire), HC11, HC12, HCS08, S12, S12X, MC56F, MCF52 series
  • Microcontrollers Nordic Semiconductor: nRF24xxx
  • Microcontrollers NEC: uPD7xxx series
  • Microcontrollers Philips (NXP): LPC1xxx, LPC2xxx, LPCxx series, 89xxx series
  • Microcontrollers Renesas: R8C/Tiny series
  • Microcontrollers Realtek, M-Square
  • Microcontrollers Scenix (Ubicom): SXxxx series
  • Microcontrollers STM: ST7xxx, STR7xx, STR9xx, STM32Fxx, STM8A/S/L series
  • Microcontrollers Silicon Laboratories(Cygnal): C8051 series
  • Microcontrollers & Programmable System Memory STMicroelectronics: uPSD, PSD series
  • Microcontrollers TI: MSP430 (both JTAG and BSL series), MSC12xxx series
  • Microcontrollers ZILOG: Z8Fxxxx, Z8FMCxxxxx, Z16Fxxxx series, ZLF645x0xx
  • Various PLD (also by Jam/VME/SVF/STAPL/... Player/JTAG support):
    Altera: MAX 3000A, MAX 7000A, MAX 7000B, MAX 7000S, MAX 9000, MAX II/G/Z
    Xilinx: XC9500, XC9500XL, XC9500XV, CoolRunner XPLA3, CoolRunner-II
  • PLD Lattice: ispGAL22xV10x, ispLSI1xxxEA, ispLSI2xxxE, ispLSI2xxxV, ispLSI2xxxVE, ispLSI2xxxVL, M4-xx/xx, M4LV-xx/xx, M4A3-xx/xx, M4A5-xx/xx, LC4xxxB/C/V/ZC/ZE, ispCLOCK, Power Manager/II, ProcessorPM
  • FPGA: Actel: ProASIC3, IGLOO, Fusion
  • FPGA: Lattice: MachXO, LatticeXP, ispXPGA

  448Pro2 448Pro2AP
Type
Universal • •
Multi Socket • •
Stand-Alone
Specialised

Sockets
1 x 48-pin
4 x 48-pin • •
8 x 48-pin

Socket Mechanism
Manual or 3rd Party Handler • •
Automatic by Built-In Actuators

Device Support
Number of Supported Devices 134,000+ 93,000+
Low Voltage Support • •
High Current/Voltage Legacy Support • •

Programming Modes
Concurrent (Asynchronous) • •
Gang (Synchronous) • •

Features
Self Test • •
Insertion Test • •
ESD Protection • •
ISP Capability • •
Multi-Programmer Capability • •

Interface to PC
USB • •
Parallel

Power Supply
USB Powered
Mains Powered • •

O/S Support
Windows 7 • •
Windows 8 • •
Windows 10 • •
Windows 11 • •

Dimensions/Weight
Width (mm) 361 310
Depth (mm) 234 205
Height (mm) 56 61
Weight (Kg) 3.5 3.5

Warranty/Support
Parts and Labour (Years) 3 3
Life-Time Technical Support • •
Life-Time Software Updates • •

Programming Speed (program/verify)
Microchip 24FC128 00:02.3 00:02.3
ST M25P20 00:03.0 00:03.0
Intel QB25F640S33 00:30.7 00:30.7
SST SST39VF016Q 00:40.8 00:40.8
AMD Am29DL640G 00:24.0 00:24.0
Samsung K8P6415UQB 00:13.0 00:13.0
Samsung K9F1G08U0M 02:02.7 02:02.7
Microchip PIC18LF8720 00:11.0 00:11.0
Atmel AT89C51RD2 00:14.4 00:14.4
  • Dataman 448Pro2AP Super Fast Industrial Universal 4X48-Pin Multiprogrammer
    • Dimensions: 310 x 205 x 61mm (12.2 x 8.1 x 2.4inches)
    • Weight: 3.5Kg (7.72lbs)
  • Switching Power Adapter
    • Operating voltage: 100-240V AC
    • Power consumption: max. 60W active
  • Power Cable
  • Moulded USB Cable
  • ISP Cable (x4)
  • Diagnostic POD for selftest of the programmer
  • Diagnostic POD for selftest of the ISP connector
  • Fixing screw for programming module (x8)
  • User Manual
  • Software
    • Compatible with Windows XP, Windows Server 2003, Windows Vista, Windows 7, Windows 8, Windows 10 and Windows 11
    • Please see our Programmer System Requirements for more information
  • Optional range of adapters and socket converters also available



The Dataman 448Pro2AP super fast industrial universal multiprogrammer comes with:

  • 30 Day Money Back Guarantee* - If you don't like it, send it back.
  • Three Year Guarantee - Three years parts and labour warranty, on the 448Pro2AP universal multiprogrammer.
  • Life-Time Technical Support - 448Pro2AP technical support is available free via our website and telephone helpdesk for life.
  • Life-Time Software Updates - 448Pro2AP software updates are available free via our website for life.



*Applies to orders from UK/US offices only.
